SHLX-PV 12-1 DC Combiner Box

SHLX-PV 12-1 DC Combiner Box

  • SHLX-PV 12-1 DC Combiner Box
feedbackfeedback
Product Description

• High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
• Strong adaptability
IP65 design, waterproof, anti dust and anti ultraviolet
Strict test for high and low temperature, used widely.
The simple installation, the simplified system wiring, the convenient wiring .
The box body is made of cold rolled steel and other metal mater ials.
• Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.

DESCRIPTION
SHLXP- V12/1 PV combiner box bus synthetic DC input of 12 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protection, short circuit protection and grounding protection. PV combiner box divided into two types: intelligent box and nonintelligent box. Intelligent PV combiner box is equipped with monitoring unit. then detect input current of each string. detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on
Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment ” CGC/GF 037:2014.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type. which adapt to the harsh environment. In addition to the core components. the other can be customized by user requirements.

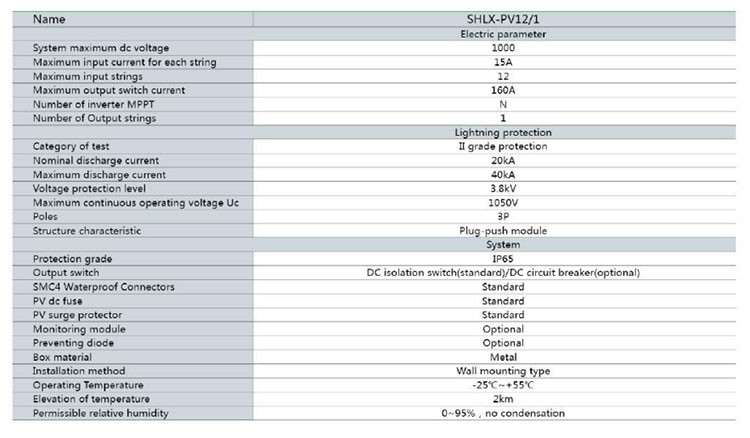

TECHNICAL PARAMETERS

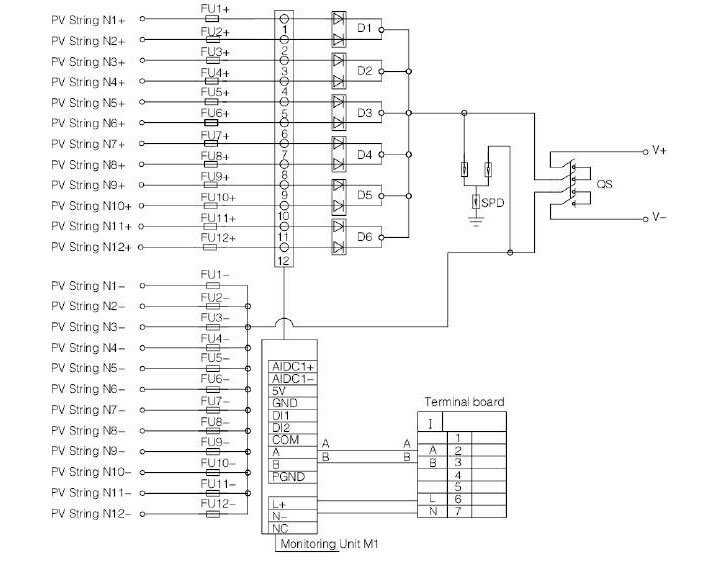

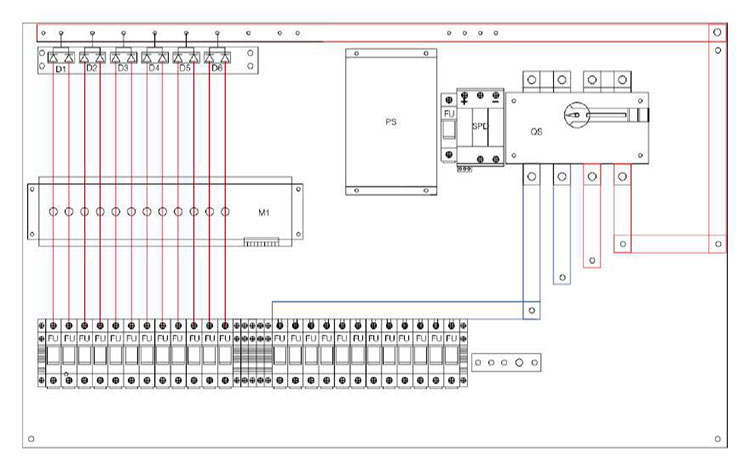

SCHEMATIC DIAGRAM
