DC Circuit Breaker

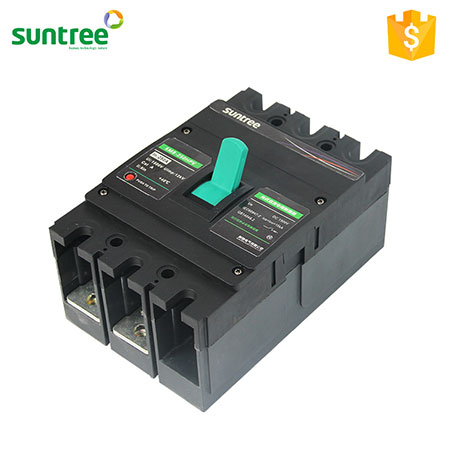

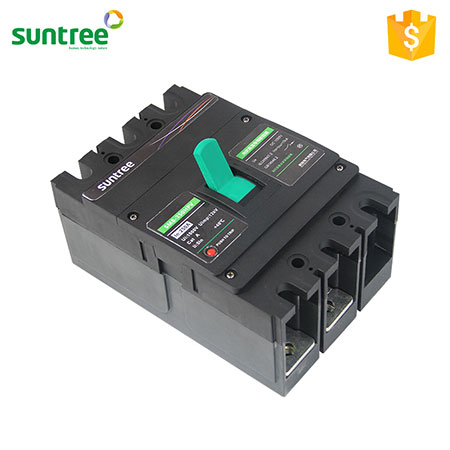

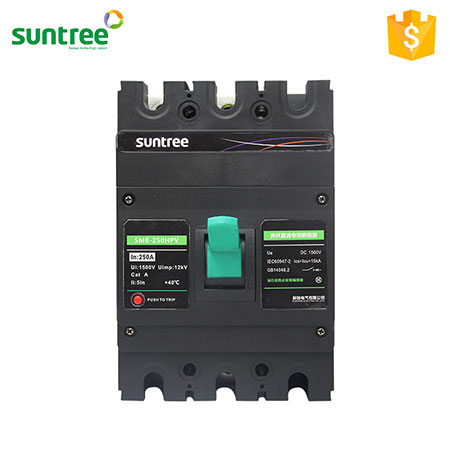

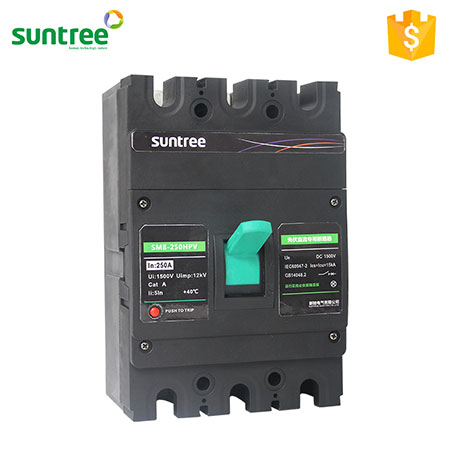

SM8-250HPV PV Specially Used DC molded case circuit breaker

SM8-250HPV PV Specially Used DC molded case circuit breaker

  • SM8-250HPV PV Specially Used DC molded case circuit breaker
  • SM8-250HPV PV Specially Used DC molded case circuit breaker
  • SM8-250HPV PV Specially Used DC molded case circuit breaker
  • SM8-250HPV PV Specially Used DC molded case circuit breaker
  • SM8-250HPV PV Specially Used DC molded case circuit breaker
feedbackfeedback
Product Description

Product Description
SM8-250HPV series photovoltaic special DC molded case circuit breaker is suitable for DC grid circuit with rated voltage up to DC1500V and rated current of 250A. DC circuit breaker has overload long delay protection, short circuit instantaneous protection function, used to distribute electric energy and protect circuit and the power supply equipment is protected from the danger of overload, short circuit, etc.The operating mechanism of the DC circuit breaker has the functions of quick closing and fast reading segmentation, compact structure, small size and convenient use

Model Name and Meaning

Attachment specification

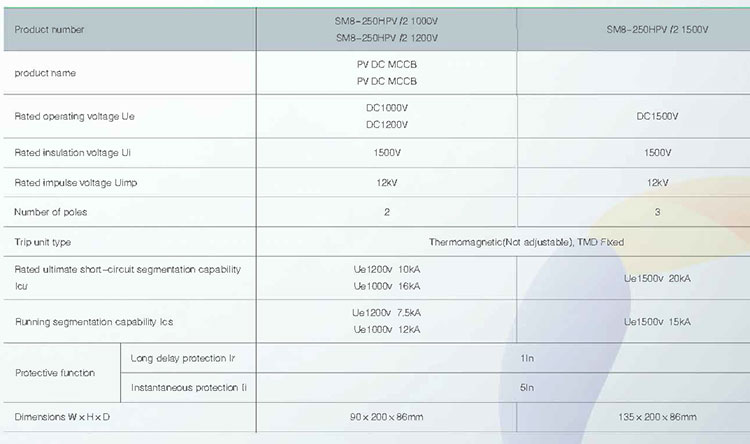

The main technical parameters

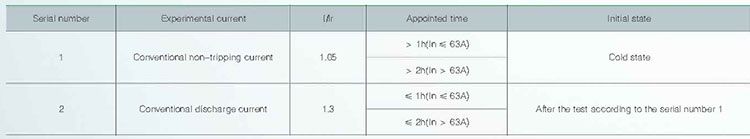

Thermal protection

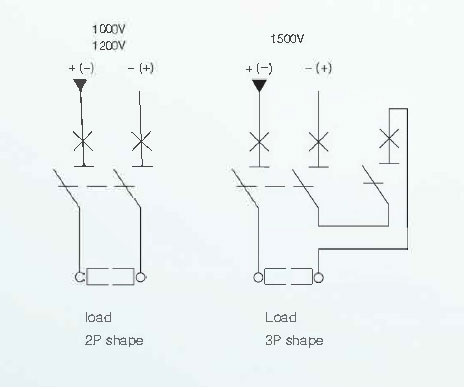

Wiring diagram

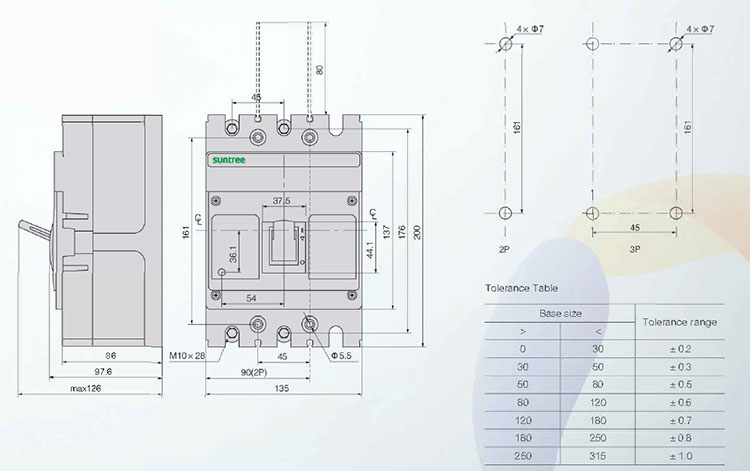

Shape and Installation Dimensions(mm)
