1P 250V 20 AMP 40 AMP DC MCB

1P 250V 20 AMP 40 AMP DC MCB

  • 1P 250V 20 AMP 40 AMP DC MCB
Product Description

Product Details

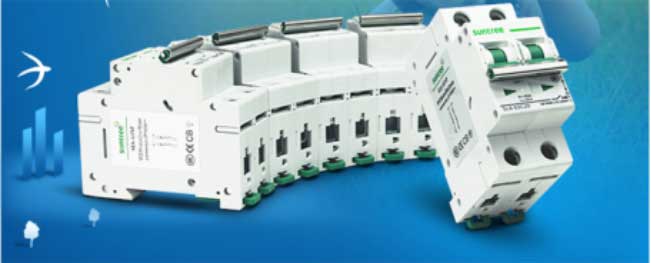

Introduction of DC MCB

SL7-63 DC MCB 1P 250V, DC reverse current protection:

1.Specialised MCB for DC applications
2.Ratings 0.5A, 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
3.Type B and C tripping characteristics (details available on request)
4.6kA short circuit capacity (IEC60898)
5.Safety terminals ensure that incorrect connection is not possible
6.Terminal capacity up to 35mm
7.High torque terminals up to 4.5Nm
8.Circuit indicator window allowing clear labeling of circuits
9.Suitable for DIN rail mounting in OEM / panel builder enclosures
10.Suitable for installation in consumer units, design units and MCB distribution boards



Feature and application

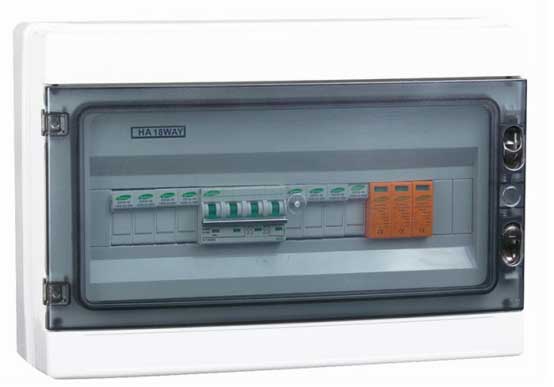

l The 1P 250V DC MCCB Used for Solar PV Combiner Box

Details Show


Wiring diagram

Installation diagram
