DC Circuit Breaker

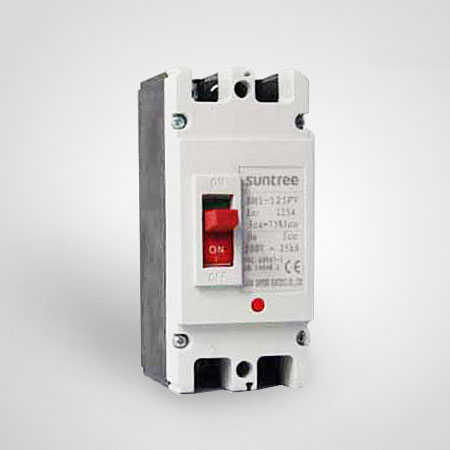

2P 550V 200A DC MCCB

2P 550V 200A DC MCCB

  • 2P 550V 200A DC MCCB
feedbackfeedback
Product Description

Product Details
Introduction of Solar 2P 550V DC MCCB

SM1-PV 2P 500V DC MCCB, DC reverse current protection:

l The product conforms to IEC60947-2 standard.

l Reliable protection at high ambient temperatures

l Loadable: string protection up to 400A

l Tasted:Ultimate short circuit breaking capacity lcu of 25kA according to IEC 60947-2

l Fast: re-closable for min-mum standstill times

l Safe: reliable disconnector properties, switching under load

l Approval: Provided on request

l Used for solar power system, installed in combiner box

l designed to distribute power and protect the circuit and power equipment against overload in solar system

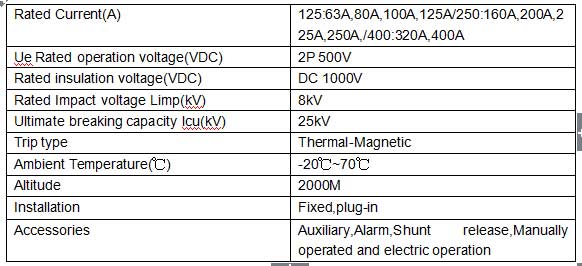

Parameters

Feature and application

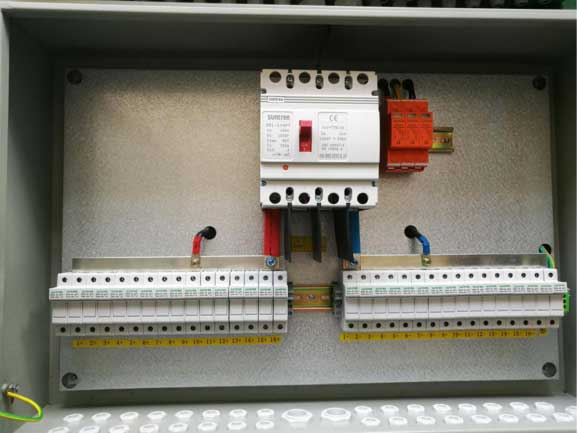

l The 2P 500V DC MCCB Used for Solar PV Combiner Box

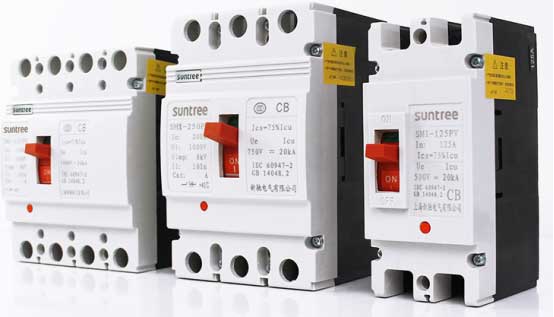

Details Show

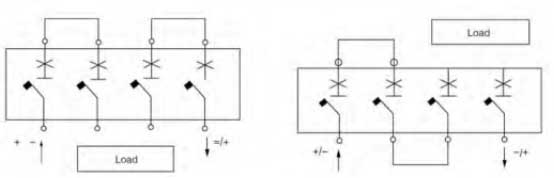

Wiring diagram

l Protection and isolation wiring

l The load should be ≤ DC1000V

l The connection considered for a network in which the middle point of supply source

l The breaker protects and isolates the load

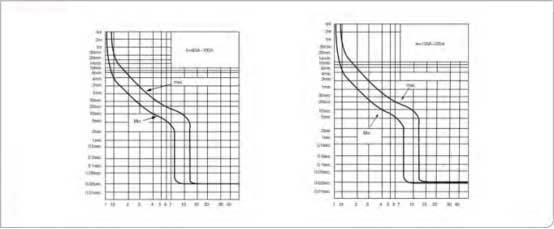

Curve Chart

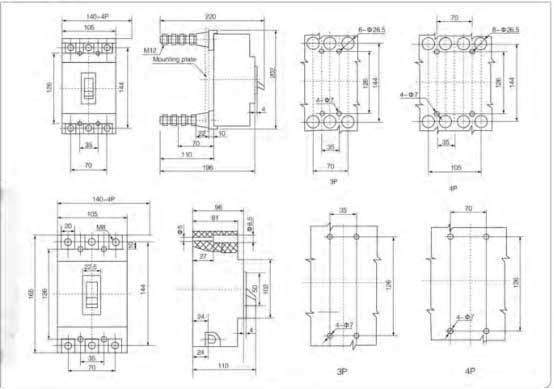

Installation Dimensions

FAQ

Q:  How can i trust you and your company ?

A: Suntree is a group company, we have 6 sub-companies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q:How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q: What function of DC MCCB?

A:Distribute power and protect the circuit and power equipment against overload in solar system

Q:What is material of DC MCCB cover?

A: Fire retardant nylon

Q: How about protection degree?

A: IP20

Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
